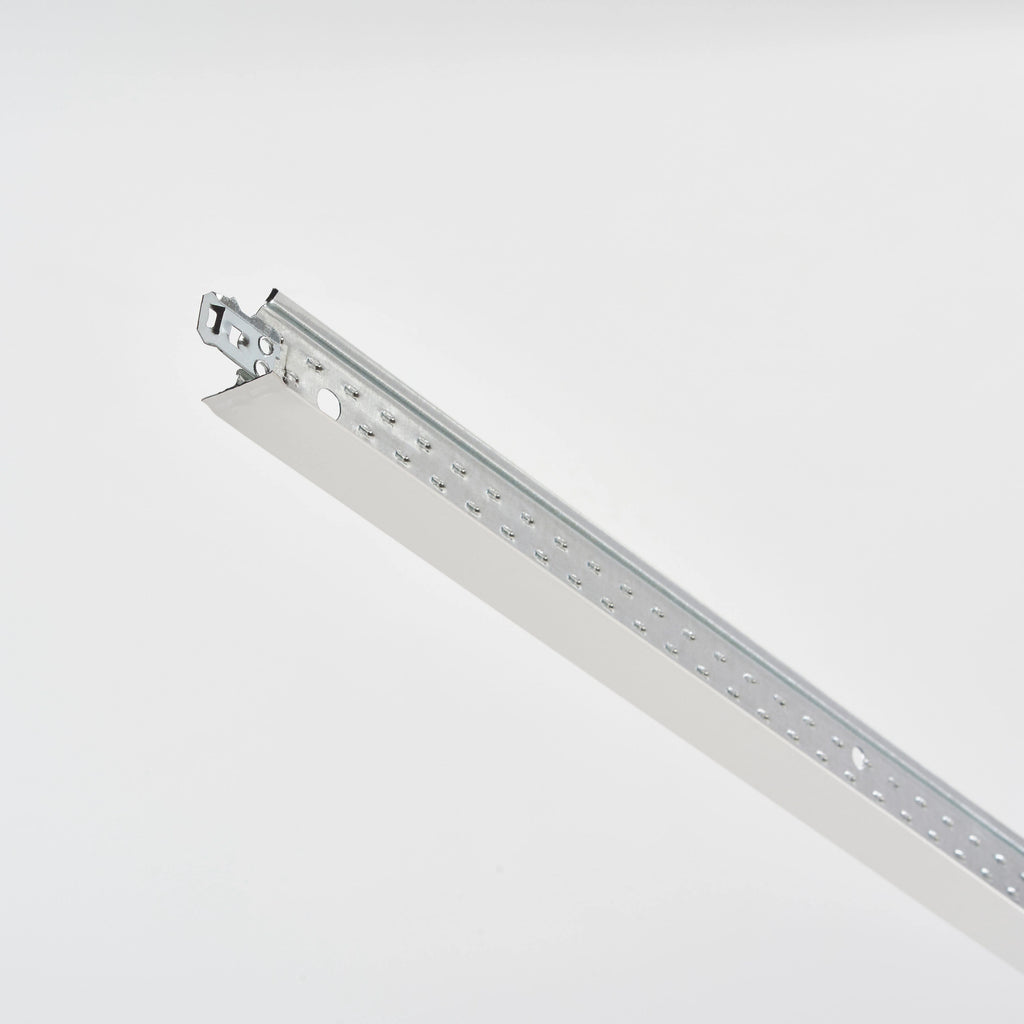

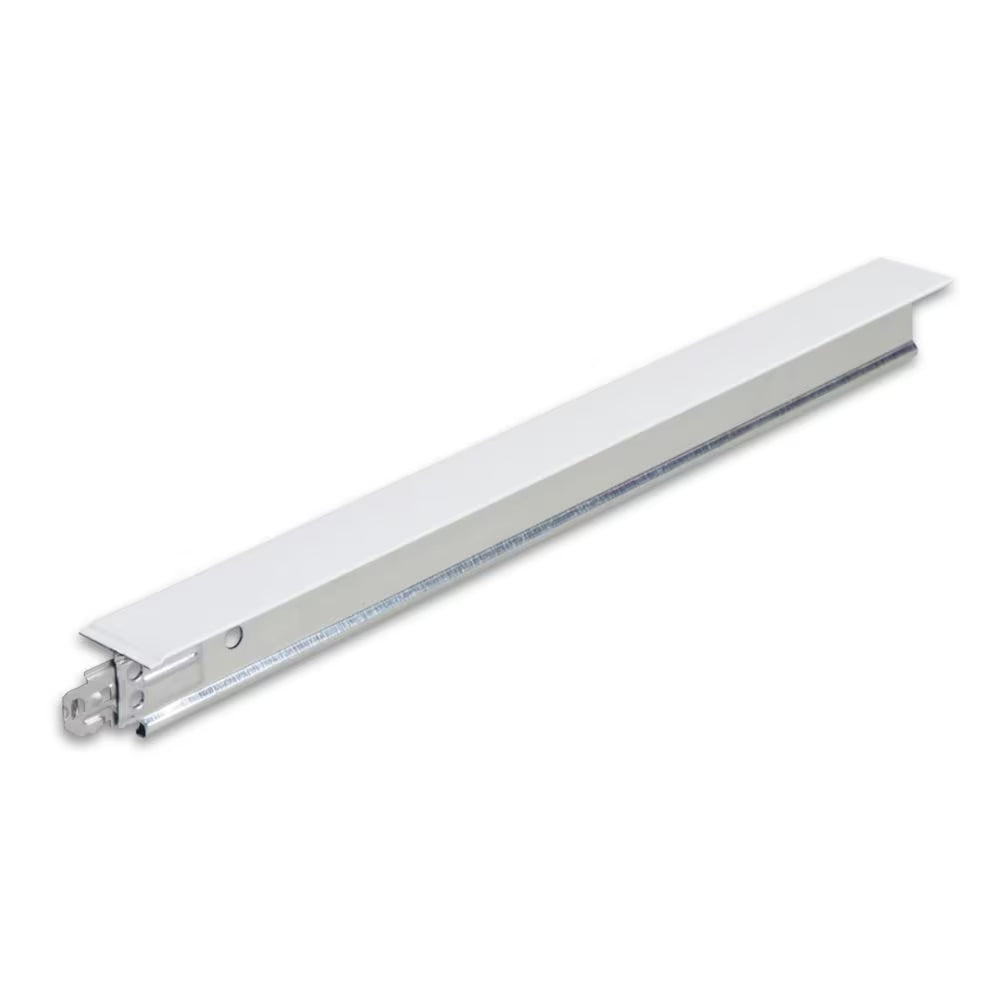

Cross Tee
Cross Tee
Cross Tees are the secondary T-shaped members in a suspended ceiling system. They span between Main Tees to form the grid that holds ceiling tiles in place. The 2′ and 4′ cross tees are the most common, corresponding to the standard ceiling tile sizes.
Structure & Material
-
Material: Galvanized steel or aluminum
-
Shape: T-shaped profile with slots/locking tabs at the ends for easy connection to Main Tees
-
Finish: White painted or pre-coated for aesthetics and corrosion resistance
Key Features
-
Supports Ceiling Tiles: Holds 2′ × 2′ or 2′ × 4′ tiles securely
-
Interlocks with Main Tees: Uses pre-punched slots or tabs for a tight grid connection
-
Alignment & Stability: Keeps ceiling tiles level and properly spaced
-
Lengths:
-
2′ cross tee: Fits 2′ × 2′ tiles (24″ span)
-
4′ cross tee: Fits 2′ × 4′ tiles (48″ span)
-
Common Sizes
| Cross Tee Type | Fits Tile Size | Length | Typical Use |
|---|---|---|---|
| 2′ Cross Tee | 2′ × 2′ | 24″ | Standard office or classroom grids |
| 4′ Cross Tee | 2′ × 4′ | 48″ | Rectangular layouts in larger rooms |
Profile dimensions:
-
Face width: 15/16″ (24 mm) standard
-
Depth: 1½″–2″ typical for load and stability
-
Material gauge: 0.019″–0.024″ (depends on manufacturer)
Applications
-
Offices, classrooms, hospitals, and commercial interiors
-
Supports mineral fiber, fiberglass, or specialty ceiling panels
-
Works with Main Tees to create a modular, leveled ceiling grid
